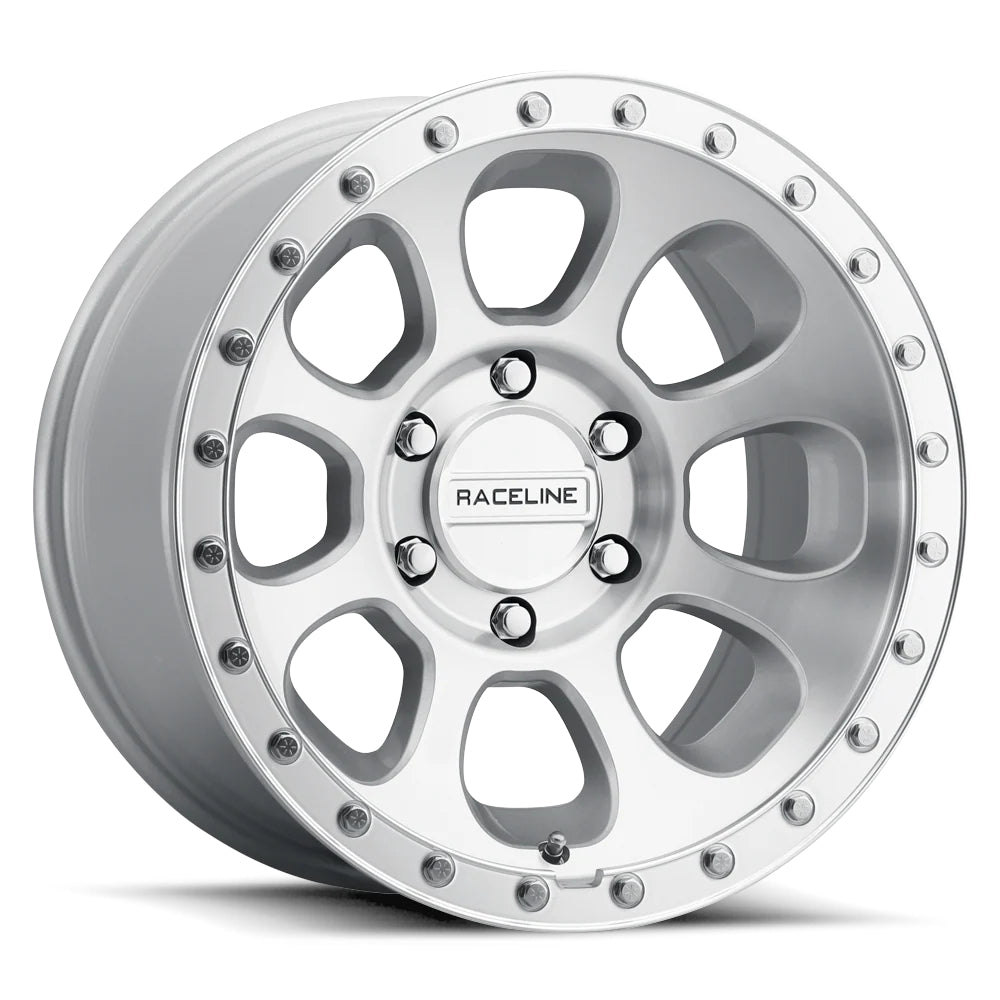

Raceline Bolt Machined Wheel

Raceline Bolt 961MC 17x9 -12mm Machined with Simulated Beadlock (8x165.1)

4.8(231 store reviews)
Save up to $320 when you add tires
Free Shipping US All orders
Fitment Guarantee Risk free
Package Options Save when you build a package
Authorized Dealer 100% brand new wheels

Specifications

Brand Raceline
Model Bolt
Part Number 961MC-79080-12
Diameter 17"
Width 9
Offset -12
Bolt Pattern 8x165.1 (8x6.5)
Centerbore / Hub 130.81mm
Backspace 4.53
Material Cast Aluminum
Construction 1-Piece
Fitment Note Lifted Truck
Load Rating 3650 lbs
Weight 26.11 lbs
Color Machined
Finish Machined with Simulated Beadlock

About the Raceline Bolt

The 961 Bolt is Raceline's iconic 8 window contoured spoke design with a simulated beadlock ring detail, e coated stainless hardware, and an opening built in for water evacuation. It is cast from heavy duty A356 aluminum for most 5, 6, and 8 lug trucks.

  • Cast A356 aluminum construction
  • 8 window contoured spoke design with simulated beadlock ring detail
  • E coated stainless hardware with a water evacuation opening
  • Finishes are Satin Black and Machined with machined bead ring detail
  • 17x9 fitments across 5, 6, and 8 lug patterns
  • Color matched snap in cap, push thru cap on 8 lug applications
