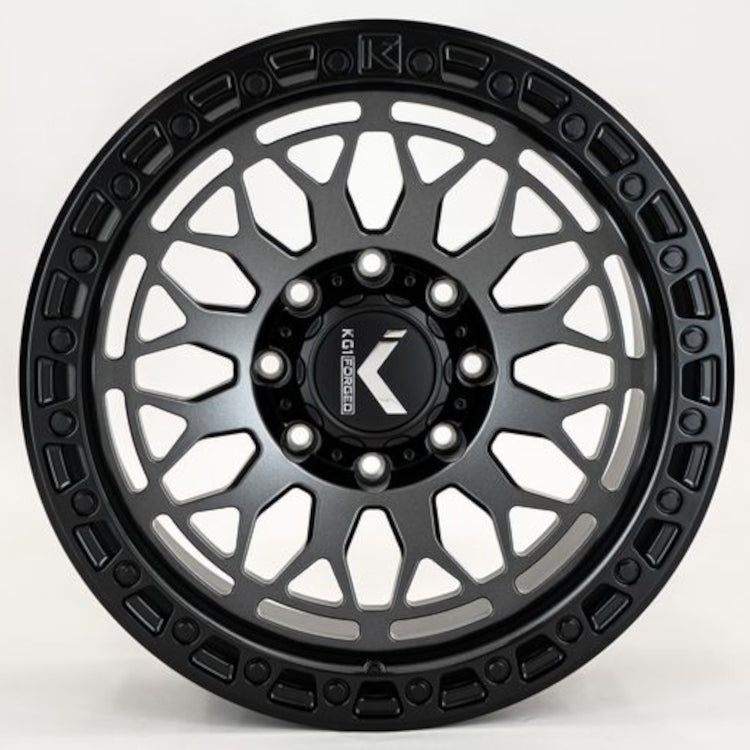

KG1 Forged Diamondhead Anthracite Wheel

KG1 Forged Diamondhead KO720F 20x9.5 -12mm Matte Anthracite with Black Lip

4.8(225 store reviews)
Save up to $640 when you add tires
Free Shipping US All orders
Fitment Guarantee Risk free
Package Options Save when you build a package
Authorized Dealer 100% brand new wheels

Specifications

Brand KG1 Forged
Model Diamondhead
Part Number KO720F209588012AB
Diameter 20"
Width 9.5
Offset -12
Bolt Pattern 8x180 (8x7.09)
Centerbore / Hub 124.30mm
Backspace 4.78
Material Forged Aluminum
Construction 1-Piece
Fitment Note Lifted Truck
Weight 36.85 lbs
Color Anthracite
Finish Matte Anthracite with Black Lip

About KG1 Forged

KG1 Forged is an American wheel brand focused exclusively on forged aluminum wheels for trucks, SUVs, and off-road vehicles. The brand operates under the umbrella of KMC Wheels, leveraging established manufacturing relationships to produce wheels built to tighter tolerances than typical cast alternatives.

KG1 is recognized for applying forged construction — a process that compresses aluminum under high pressure to increase strength and reduce weight — to fitments traditionally dominated by heavier cast wheels. This makes the lineup a notable option for performance-oriented truck and off-road builds where unsprung weight is a consideration.

Forged monoblock construction is the defining characteristic across the KG1 catalog, with designs oriented toward aggressive, modern aesthetics suited to lifted and leveled applications.
